9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

40 - ELECTRICAL

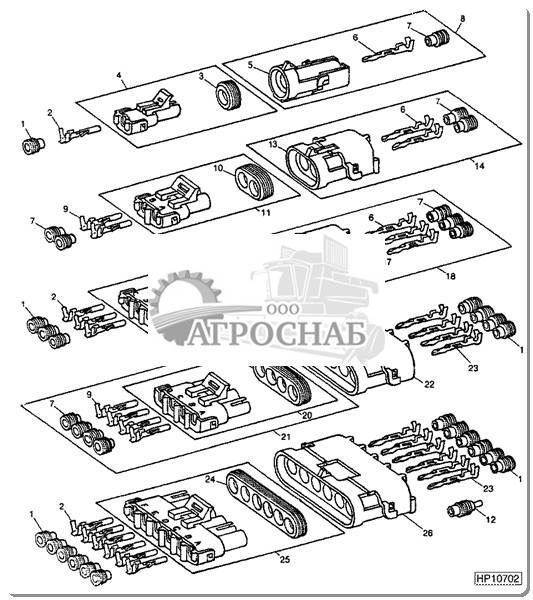

Weatherpack Terminals and Connectors

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R78063 Elec. Connector Seal AR (C)
R78059 Electrical Connector Assy AR (A) (D)
R78062 Elec. Connector Seal AR (B)
2 R78057 Elec. Connector Terminal AR (A) (D)
R78060 Elec. Connector Terminal AR (B) (C)
3 R78047 Seal AR
4 RE12362 Electrical Connector Assy AR
5 R78052 Electrical Connector Assy AR
6 R78061 Elec. Connector Terminal AR (B) (C)
7 R78063 Elec. Connector Seal AR (C)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
8 RE12334 Electrical Connector Assy AR
9 R78060 Elec. Connector Terminal AR (B) (C)
10 R78048 Elec. Connector Accessory AR
11 RE12363 Elec. Connector Terminal AR
12 R78064 Elec. Connector Cavity Plug AR
13 R78053 Electrical Connector Assy AR
14 RE12330 Electrical Connector Assy AR
15 R78049 Seal AR
16 RE12364 Electrical Connector Assy AR
17 R78054 Electrical Connector Assy AR
key PART NO. PART NAME QTY SERIAL NO. REMARKS
18 RE12332 Electrical Connector Assy AR
19 R78050 Seal AR
20 RE12365 Electrical Connector Assy AR
21 RE12333 Electrical Connector Assy AR
22 R78055 Electrical Connector Assy AR
23 R78061 Elec. Connector Terminal AR (B) (C)
R78058 Electrical Connector Assy AR (A) (D)
24 R78051 Seal AR
25 RE12366 Electrical Connector Assy AR
26 R78056 Electrical Connector Assy AR

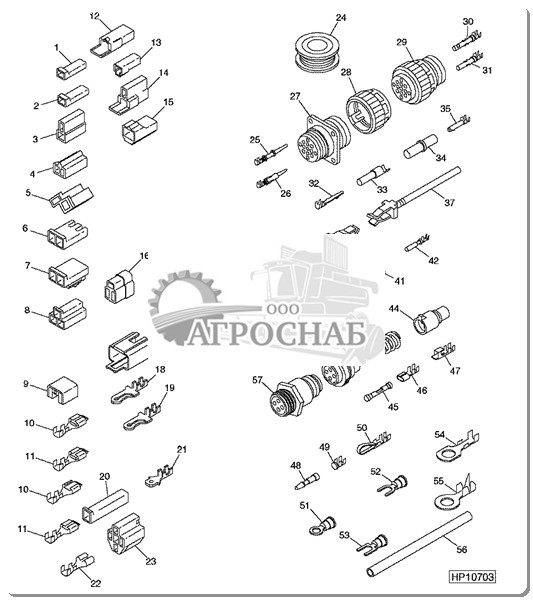

Electrical Connector Service Kit

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 T28583 Elec. Connector Housing AR
2 M43835 Electrical Connector Assy AR
3 R77476 Electrical Connector Assy AR
4 R77477 Electrical Connector Assy AR
5 R77479 Elec. Connector Terminal AR
6 R77480 Electrical Connector Assy AR
7 R77481 Electrical Connector Assy AR
8 R77482 Electrical Connector Assy AR
9 H104855 Electrical Connector Assy AR
10 U46662 Elec. Connector Terminal AR (D) (E)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R65595 Elec. Connector Terminal AR (B)
12 T28585 Electrical Connector Assy AR
13 R77475 Electrical Connector Assy AR
14 T28586 Electrical Connector Assy AR
15 R77478 Electrical Connector Assy AR
16 R77483 Electrical Connector Assy AR
17 R48887 Electrical Connector Assy AR
18 T34067 Elec. Connector Terminal AR (D) (E)
19 R77484 Elec. Connector Terminal AR (B) (C)
20 U46370 Electrical Connector Assy AR
key PART NO. PART NAME QTY SERIAL NO. REMARKS
21 R77485 Elec. Connector Terminal AR (D) (E) (F)
22 R77486 Elec. Connector Terminal AR (D) (E)
23 R77487 Electrical Connector Assy AR
24 TY16063 Wire AR (B) 15M (50 FT.)
TY16069 Wire AR (C) 30.5M (100 FT.)
TY16076 Wire AR (D) 30.5M (100 FT.)
TY16078 Wire AR (E) 30.5M (100 FT.)
TY16080 Wire AR (E) 30.5M (100 FT.)
TY16086 Wire AR (F) 30.5M (100 FT.)
TY16089 Wire AR (G) 30.5M (100 FT.)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
25 R77462 Elec. Connector Terminal AR (A) (G) (H)
26 R77464 Elec. Connector Terminal AR (D) (E) (F)
27 R77456 Elec. Connector Terminal AR (37 WAY)
28 R77458 Elec.Connect Locking Device AR SIZE 23
R77459 Elec.Connect Locking Device AR SIZE 17
R77460 Elec.Connect Locking Device AR SIZE 13
R77461 Elec.Connect Locking Device AR SIZE 11
29 R77457 Elec. Connector Terminal AR 37 WAY
30 R77463 Elec. Connector Terminal AR (A) (G) (H)
31 R77465 Elec. Connector Terminal AR (D) (E) (F)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
32 R77468 Elec. Connector Terminal AR (B) (C) (D)
33 R77466 Electrical Connector Assy AR
34 R77467 Electrical Connector Assy AR
